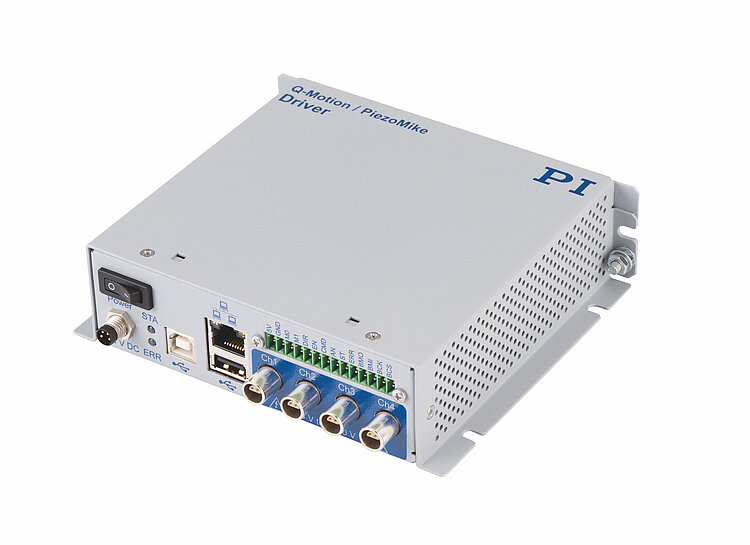

E-872.401 Q-Motion® Piezo Motor / PiezoMike Drive Electronics
Drives up to 4 Linear Actuators, Benchtop Device
- For positioners with Q-Motion® piezo inertia drives and PiezoMike linear actuators
- Inexpensive, scalable multi-channel concept
- Integrated interfaces: TCP/IP, USB, USB for joystick, digital I/O
- Extensive software support
Drive electronics for 4 piezo mechanics
Drivers for inertia drives (Q-Motion® and PiezoMike) without position sensor (open-loop operation). Drives up to 4 linear actuators: The integrated amplifier drives one axis at a time; switching between the channels is done via commands. Special variant is possible on request for operating up to 64 channels via external module.
Features
Full-step and linear mode. Interfaces: TCP/IP, USB, USB for joystick, digital I/O.
Extensive functions, software support
Powerful macro command language. Nonvolatile macro storage, e.g., for stand-alone operation with autostart macro. Data recorder. ID chip detection for fast startup. Extensive software support, e.g., for LabVIEW, C, C++, MATLAB, Python. PIMikroMove user software.
Specifications
Specifications
Interfaces and operation | E-872.401 |
---|---|
Communication interfaces | USB, Ethernet |
Actuator connection | 4 x LEMO connector, 3-pin |
Digital inputs | TTL inputs for commanding and configuration |
Digital output | Error status |
Command set | PI General Command Set (GCS) |
User software | PIMikroMove |
Application programming interfaces | API for C / C++ / C# / VB.NET / MATLAB / Python, drivers for LabVIEW |
Display and indicators | LED indicator for status and operation |
Manual control | Joystick via USB |
