Controllers & Drivers for Piezomotors

Controllers & Drivers for Piezomotors

Piezomotor controllers are designed to optimize the performance of the various piezomotor drives. They are available as single-channel or multi-channel devices in  benchtop, rackmount or OEM versions.

For Q-Motion® and PiezoMike Inertia Piezomotors

E-872.401 Q-Motion® Piezo Motor / PiezoMike Drive Electronics

Drives up to 4 Linear Actuators, Benchtop Device

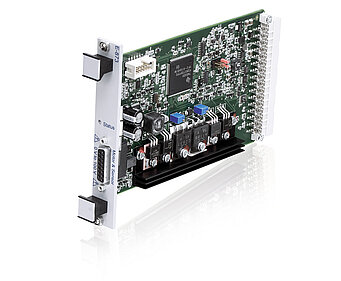

E-873.10C885 Q-Motion® Controller Module for C-885 PIMotionMaster

For Piezoelectric Inertia Drives, 1 Axis
  • Channels/axes: 1
  • Drive type/amplifier type: Piezoelectric inertia drive
  • Communication interfaces: TCP/IP, USB (via C-885)
  • Housing type: Module without housing, 4 HP

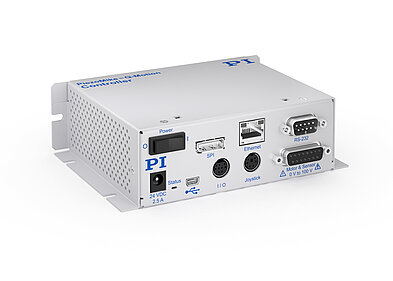

E-873 Q-Motion® Servo Controller, 1 Axis

For Piezoelectric Inertia Drives, SPI, TCP/IP, USB, RS-232 Interfaces
  • Channels/axes: 1
  • Drive type/amplifier type: Piezoelectric inertia drive
  • Communication interfaces: RS-232, TCP/IP, USB
  • Housing type: Benchtop device

For PILine® Ultrasonic Piezomotors

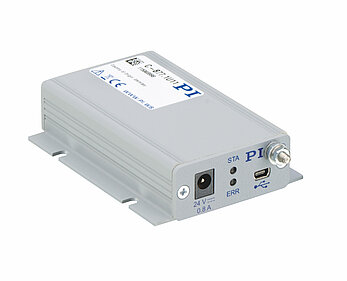

C-877.1U11 PILine

For ultrasonic piezo motors, 1 axis, inexpensive and compact
  • Channels/axes: 1
  • Drive type/amplifier type: PILine® piezo motor
  • Communication interfaces: USB
  • Housing type Benchtop device

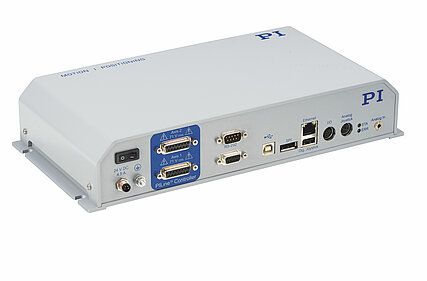

C-867.2U2 PILine

For two-axis positioning stages with PILine
  • Channels/axes: 2
  • Drive type/amplifier type: PILine® piezo motor, performance classes 1 and 2
  • Communication interfaces: USB, RS-232, TCP/IP, SPI
  • Housing type Benchtop device

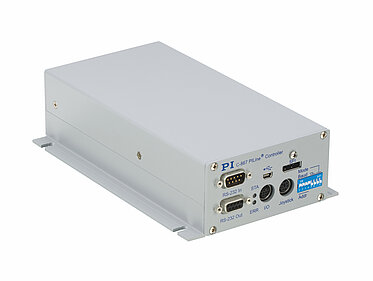

C-867.1U PILine

For Single-Axis Positioning Stages with PILine
  • Channels/axes: 1
  • Drive type/amplifier type: PILine® piezo motor, performance classes 1 and 2
  • Communication interfaces: USB, RS-232, SPI
  • Housing type: Benchtop device

C-867.10C885 PILine

For PILine
  • Channels/axes: 1
  • Drive type/amplifier type: PILine® piezo motor
  • Communication interfaces: USB, TCP/IP (via C-885)
  • Housing type Module without housing, 4 HP

For PiezoWalk® Piezo Stepping Drives

E-861.11C885 NEXACT® Controller Module

For the C-885 PIMotionMaster Modular Controller System
PI E-861

E-861 PiezoWalk® NEXACT® Controller

Networkable Controller for NEXACT® Linear Drives and Positioners
