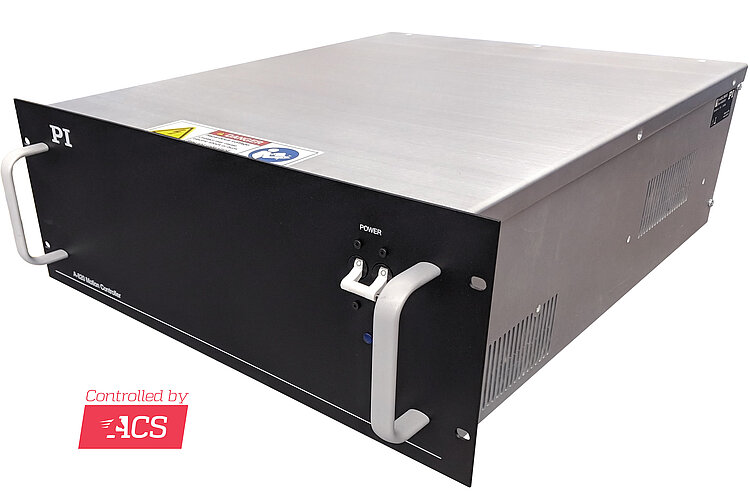

A-82x PIglide Motion Controller for 4, 6 or 8 Axes
For Stages with Direct Drive and High Power Requirements, TCP/IP Interface
- 4, 6 or 8 high-performance motion axes
- Fully integrated closed-loop servo control, amplifier module, and power supplies
- For voice coil drives, DC motors, and brushless 3-phase motors
- Quiet PWM drives. Optional: NanoPWM high-performance drive module
- Encoder inputs support incremental (analog sine/cosine and RS-422) and absolute (BiSS-C, EnDat 2.1/2.2) encoder
- 10 A continuous current / 20 A peak output current per axis
Overview

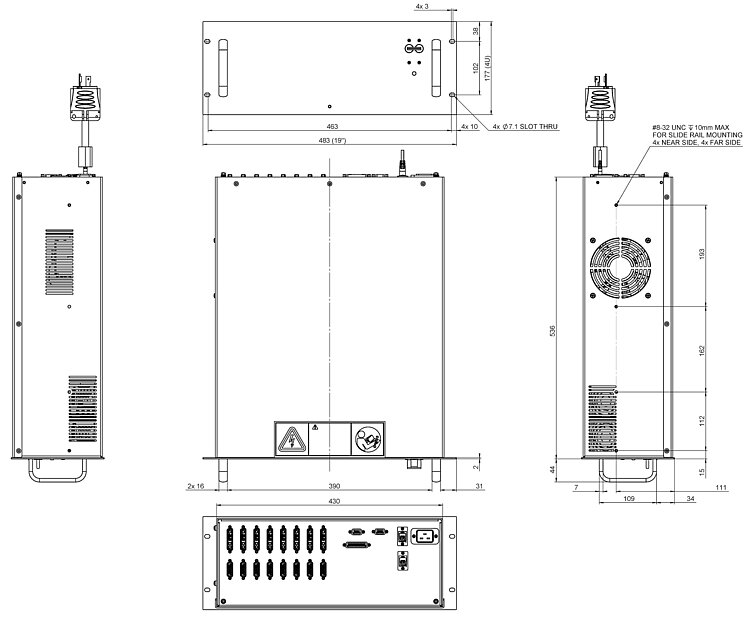

The A-82x motion controller series from PI offers a fully integrated electronics solution with controller, drives, and power supplies in a compact 4-U-high 19-inch rack unit. The A-82x controllers are designed and optimized for PIglide air bearing stages that are equipped with direct drive linear and rotation servo motors, and high-resolution encoders. The A-82x motion controller features the state-of-the-art ACS SPiiPlusEC motion controller and EtherCAT master.
Standard options include inputs for incremental sine/cosine and absolute encoders that use the BiSS-C data protocol. Support for sine/cosine encoders has an integrated interpolation factor of 16384x. All controllers feature integrated flash memory for stored motion programs and parameters.
The A-82x controllers can be operated in stand-alone mode running stored programs, or controlled via an external PC. A PC is required for programming and startup. All software is supplied with the controller.
If the controller is purchased together with a PIglide air bearing stage or positioning system, PI will perform the servo tuning, startup of the controller, and error calibration, and supply a complete ready-to-use positioning system.
The NanoPWM technology from ACS is integrated into the A-824.2Nx00 models. They offer the best possible solution for demanding positioning applications: Subnanometer position holding, tracking errors limited to a few nanometers, optimal velocity constancy. NanoPWM are a genuine alternative to linear drives: Comparable performance at a lower price with less space required for the overall system.
Options and Upgrades
- Absolute encoders or incremental encoders (can be combined according to customer specifications for all axes of the controller)
- G-Code programming
- Input shaping
- ServoBoostTM upgrade. Provides better, more consistent servo performance that is insensitive to noise or changes in the system.
- ServoBoostTM PLUS upgrade. Provides higher position stability and velocity constancy.
- Additional control axes for external drives via EtherCAT
- Alternative customized packaging for OEM setups
Specifications
Specifications
A-824.21x00 | A-824.2Nx00 | A-826.21x00 | A-828.21x00 | |
---|---|---|---|---|
Number of drive axes | 4 | 4 | 6 | 8 |
Number of controller axes | 8 | 8 | 16 | 16 |
Controller type | Closed-loop servo control (PID), parameter changing during operation | Closed-loop servo control (PID), parameter changing during operation | Closed-loop servo control (PID), parameter changing during operation | Closed-loop servo control (PID), parameter changing during operation |
Servo-frequency position control | 10 kHz | 10 kHz | 10 kHz | 10 kHz |
Servo frequency current control | 20 kHz | 20 kHz | 20 kHz | 20 kHz |
EtherCAT cycle time, frequency profile generator | 5 kHz | 5 kHz | 4 kHz | 4 kHz |
Trajectory profiles | Point-to-point, jog, s-curve, interpolated coordinated multi-axis profiles | Point-to-point, jog, s-curve, interpolated coordinated multi-axis profiles | Point-to-point, jog, s-curve, interpolated coordinated multi-axis profiles | Point-to-point, jog, s-curve, interpolated coordinated multi-axis profiles |
Cooling | Fan on the side (continuous operation, constant speed) | Fan on the side (continuous operation, constant speed) | Fan on the side (continuous operation, constant speed) | Fan on the side (continuous operation, constant speed) |
Drive type | PWM | NanoPWM | PWM | PWM |
Motor types | Voice coil Brushed DC motor Brushless 3-phase motor with sine commutation | Voice coil Brushed DC motor Brushless 3-phase motor with sine commutation | Voice coil Brushed DC motor Brushless 3-phase motor with sine commutation | Voice coil Brushed DC motor Brushless 3-phase motor with sine commutation |
Encoder options (factory default) (Can be configured individually for combinations according to customer specifications) | Incremental sine/cosine (1 Vpp) A/B quadrature (RS-422) (on request), Absolute encoder BiSS-C | Incremental sine/cosine (1 Vpp) A/B quadrature (RS-422) (on request), Absolute encoder BiSS-C | Incremental sine/cosine (1 Vpp) A/B quadrature (RS-422) (on request), Absolute encoder BiSS-C | Incremental sine/cosine (1 Vpp) A/B quadrature (RS-422) (on request), Absolute encoder BiSS-C |
Interpolation factor sine/cosine encoder | 4x to 16384x (can be adjusted by software) | 4x to 65532x (can be adjusted by software) | 4x to 16384x (can be adjusted by software) | 4x to 16384x (can be adjusted by software) |
Output voltage | 72 V DC | 96 V DC | 72 V DC | 72 V DC |
Output current (per axis) | 10 A continuous operation, 20 A peak (<1 s) | 6.6 A continuous operation, 20 A peak (<1 s) | 10 A continuous operation, 20 A peak (<1 s) | 10 A continuous operation, 20 A peak (<1 s) |
Output power (total) | 1100 W continuous operation 2300 W peak | 1500 W continuous operation 3000 W peak | 1500 W continuous operation 3000 W peak | 1500 W continuous operation 3000 W peak |
Interfaces | A-82x.21x00 | A-824.2Nx00 |
---|---|---|
Communication | Ethernet: TCP/IP, 100/1000 Mbps Ethernet/IP | Ethernet: TCP/IP, 100/1000 Mbps Ethernet/IP |
User I/O (without reference and limit switch) | 4x digital input, 24 V DC, sink 3x digital output, 24 V DC, source 2x analog input, differential, 12-bit 2x analog output, differential, 10-bit 4x RS-422 high-speed output for position trigger (PEG) | 4x digital input, 24 V DC, sink 4x digital output, 24 V DC, source 2x analog input, differential, 12-bit 2x analog output, differential, 10-bit 4x RS-422 high-speed output for position trigger (PEG) |
Interlock / motion-stop | 1x input, 24 V DC | 2x input, 24 V DC |
Connector interface | Rear panel connectors D-sub for motor and signal connections IEC 60320 type C20 for power supply (power cord with NEMA L6-20P plug in the scope of delivery) | Rear panel connectors D-sub for motor and signal connections IEC 60320 type C20 for power supply (power cord with NEMA L6-20P plug in the scope of delivery) |
