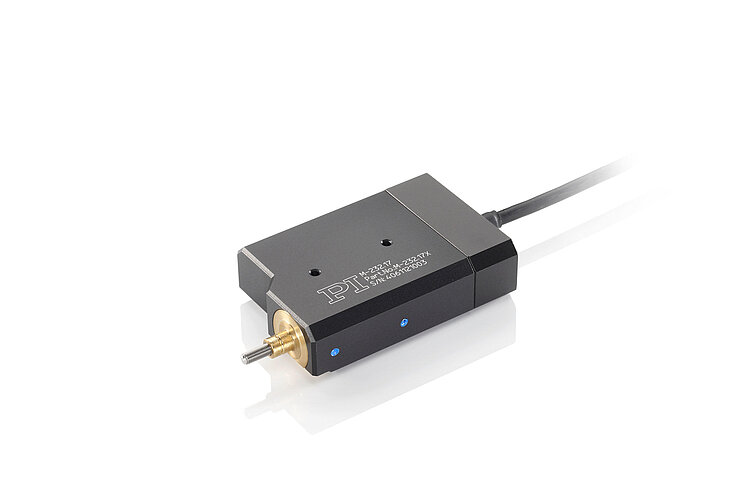

M-232 High-Resolution Linear Actuator with DC Motor

Compact due to Folded Drive

Travel range 17 mm
Minimum incremental motion 0.1 µm
Velocity up to 1.5 mm/s
Closed-loop DC motor
MTBF >5000 h

quote / order

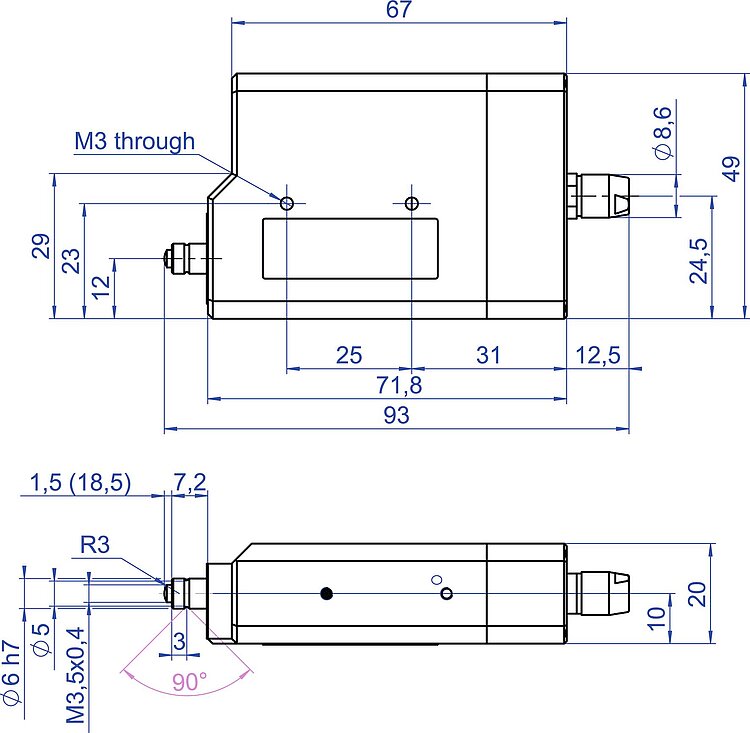

M-232, dimensions in mm. Note that a comma is used in the drawings instead of a decimal point.

Compact precision-class linear drive

High-resolution linear actuator, DC motor. Compact design due to folded drive. Rotating tip, rotating pusher. Position-controlled DC motors with a gearhead and high-resolution rotary encoders allow for incremental motion and repeatability of just 100 nm

Fits on the M-105 microtranslation stage.

High-quality components

Extremely low-friction and backlash-free construction. Noncontact limit switches protect the mechanics. Position-controlled variants with differential encoder driver in the connector for safe signal transfer over distances up to 10 m

Application fields

Precision alignment, motorized alternative for micrometer screws.

Download datasheet specifications quote / order

Datasheet

Version / Date

2023-07-12

pdf - 425 KB

Version / Date

2023-07-12

pdf - 429 KB

Download

Motion	M-232.17	Tolerance
Active axes	X
Travel range in X	17 mm
Maximum velocity in X, unloaded	1.5 mm/s
Positioning	M-232.17	Tolerance
Minimum incremental motion in X	0.1 µm	typ.
Unidirectional repeatability in X	± 0.2 µm	typ.
Backlash in X	2 µm	typ.
Reference switch	Encoder index
Limit switches	Hall effect
Integrated sensor	Incremental rotary encoder
Sensor resolution	2048 Cts./rev.
Drive Properties	M-232.17	Tolerance
Drive type	DC gear motor
Operating voltage	0 to ±12 V
Drive force in X	40 N	typ.
Mechanical Properties	M-232.17	Tolerance
Drive screw type	Trapezoidal drive screw
Drive screw pitch	0.4 mm
Gear ratio i	28,44444 : 1
Overall mass	170 g
Material	Aluminum anodized, chrome steel
Miscellaneous	M-232.17	Tolerance
Operating temperature range	-20 to 65 °C
Connector	D-sub 15-pin (m)
Cable length	0.5 m
Recommended controllers / drivers	C-863.12 C-885 with C-863.20C885 C-884

Download datasheet downloads quote / order

Datasheet

Version / Date

2023-07-12

pdf - 425 KB

Version / Date

2023-07-12

pdf - 429 KB

Download

Documentation

Linear Actuators: M-168 / M-22x / M-23x

Version / Date

6.0.0 2023-10-10

pdf - 372 KB

Version / Date

6.0.0 2023-10-10

pdf - 384 KB

Download

Documentation

M-232 Compact High-Resolution Linear Actuator

Version / Date

1.2 2020-08-31

pdf - 942 KB

Version / Date

1.2 2020-08-31

pdf - 1 MB

3D Models

zip - 94 KB

quote / order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

M-232.17

High-resolution linear actuator with DC motor; DC gear motor; 17 mm travel range; 40 N feed force; 1.5 mm/s maximum velocity; trapezoidal-threaded spindle; incremental rotary encoder, 2048 counts/rev. sensor resolution; limit switches: Hall effect; 0.5 m cable length
