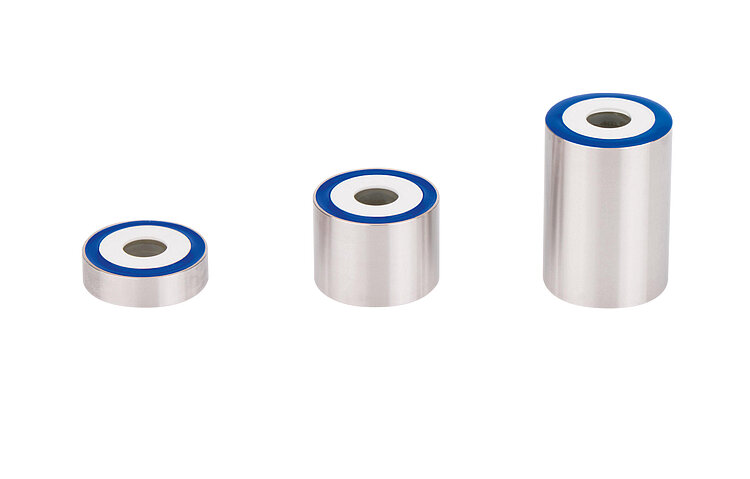

P-131 PIRest Actuators

Active Shims with Nanometer Resolution and Long-Term Stability

Long-term stability without permanent power supply
Easy readjustment of machines at inaccessible locations
Avoids time-consuming manual adjusting processes
Nanometer resolution and micrometer displacement
Load capacity up to 4000 N per actuator
Temperature sensor

quote / order

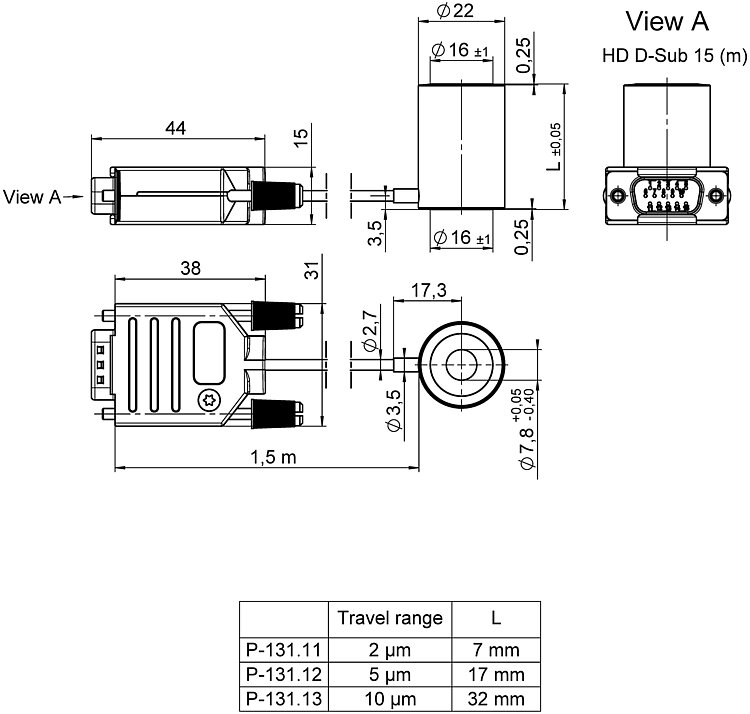

P-131.1x: dimensions in mm. Note that a comma is used in the drawings instead of a decimal point.

Application fields

Set-and-forget applications
Adaptive mechanics
Drift compensation
Alignment of optical components
Precision mechanics
Static precision positioning
Metrology / interferometry

Long-term stable positioning without permanent power supply

Once displaced, actuators with PIRest technology hold their position stable without permanent control voltage. Nanometer precision, maintenance-friendly and inexpensive adjustments are possible even at inaccessible locations.

High user-friendliness due to automatic configuration

Important operating parameters are stored on the mechanic's ID chip and are read out automatically when the electronics are switched on.

Download datasheet specifications quote / order

Datasheet

Version / Date

2023-07-25

pdf - 481 KB

Version / Date

2023-07-25

pdf - 481 KB

Version / Date

2018-10-23

pdf - 624 KB

Version / Date

2018-10-23

pdf - 595 KB

Download

Motion	P-131.11	P-131.12	P-131.13	Tolerance
Active axes	Z	Z	Z
Travel range in Z, open loop	2 µm	5 µm	10 µm	±20 %
Positioning	P-131.11	P-131.12	P-131.13	Tolerance
Minimum incremental motion in Z	< 10 nm	< 10 nm	< 10 nm
Drive Properties	P-131.11	P-131.12	P-131.13	Tolerance
Drive type	PIRest	PIRest	PIRest
Voltage for active adjustment	120 V	120 V	120 V	max.
Voltage for for long-term stable position	0 V	0 V	0 V
Electrical capacitance	3.4 µF	10.2 µF	20.4 µF	±20 %
Mechanical Properties	P-131.11	P-131.12	P-131.13	Tolerance
Stiffness	1000 N/µm	350 N/µm	170 N/µm	typ.
Permissible push force in Z	4000 N	4000 N	4000 N	max.
Miscellaneous	P-131.11	P-131.12	P-131.13	Tolerance
ID chip	Yes	Yes	Yes
Operating temperature range	5 to 40 °C	5 to 40 °C	5 to 40 °C
Connector	HD D-sub 15-pin (m)	HD D-sub 15-pin (m)	HD D-sub 15-pin (m)
Cable length	1.5 m	1.5 m	1.5 m
Recommended controllers / drivers	E-135	E-135	E-135
Temperature sensor	Yes	Yes	Yes
