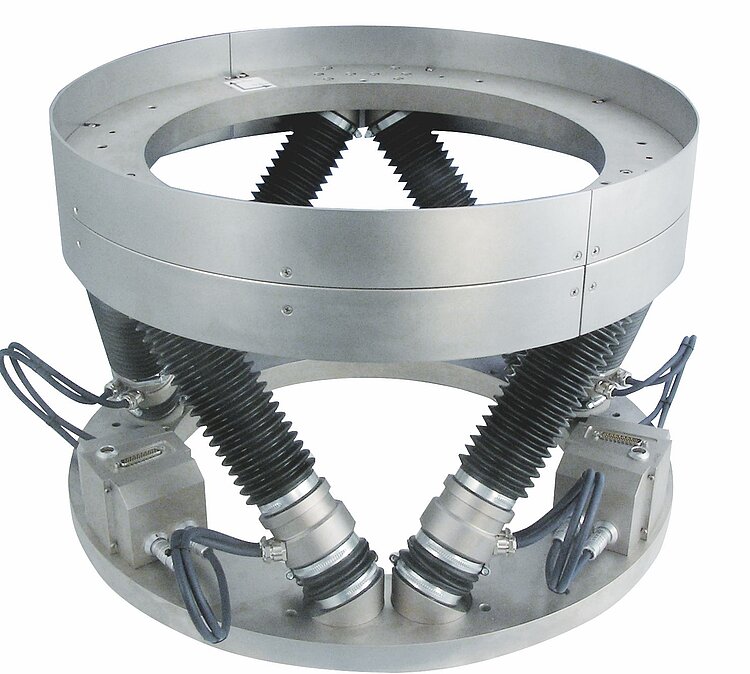

M-850KWAH Weather-Resistant Hexapod for Astronomy

M-850KWAH Weather-Resistant Hexapod for Astronomy

Precision 6-Axis Positioner for Outdoor Applications

Unidirectional repeatability 5 μm
Load capacity to 75 kg
Clear aperture Ø 420 mm
Long Lifetime: 2 million cycles
Drive: brushless motors
Corresponds to protection class IP 64
Corrosion protection

The M-850KWAH custom Hexapod for astronomy applications is protected by rubber boots and and suitable materials. The special mechanical design as well as a non-standard controller make it particularly well-suited for telescope applications in the highlands of Chile, where it is operated outdoors at elevations up to 5,000 m above sea level

Download datasheet specifications quote / order

Datasheet

Version / Date

---

pdf - 703 KB

Version / Date

---

pdf - 702 KB

Travel ranges

Max. load

Mass

Dimensions

M-850KWAH Weather-Resistant Hexapod for Astronomy

X: ±10 mm

Y: ±11 mm

Z: ±16 mm

75 kg

46 kg

Ø external: 580 mm

Height: 357 mm

Download datasheet downloads quote / order

Datasheet

Version / Date

---

pdf - 703 KB

Version / Date

---

pdf - 702 KB

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

M-850KWAH

Weatherproof Parallel-Kinematics Hexapod, Clear Aperture Ø 420 mm
