AB-65 Adapter Bracket
For Vertical Mounting of Linear and Rotation Stages
- Vacuum-compatible articles to 10-9 hPa available

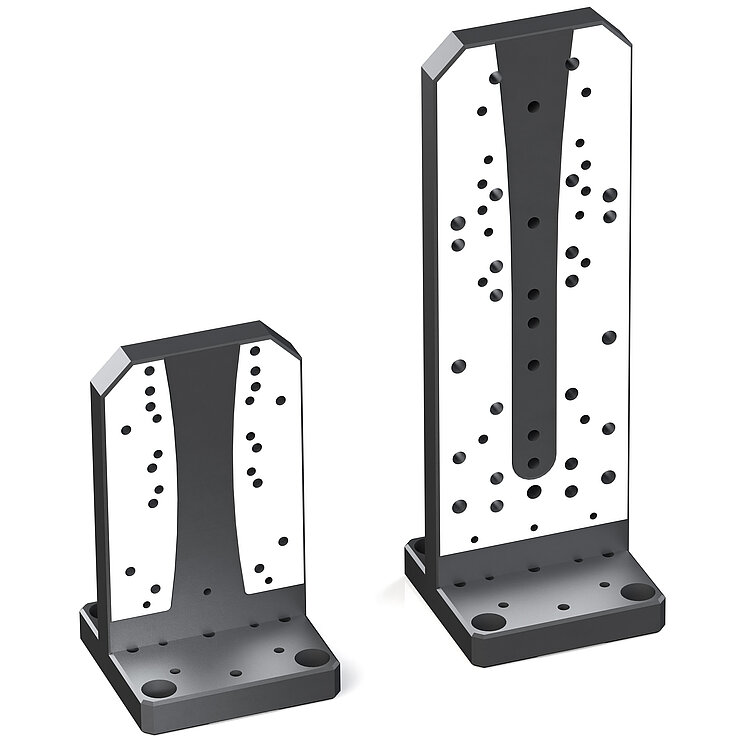

AB-65 Adapter Bracket
Product Description
Specifications
Downloads
Quote / Order
Product overview
The adapter is compatible with selected linear or rotation stages as well as goniometers.
Vacuum-compatible product variants to 10-9 hPa available.
Types of mounting

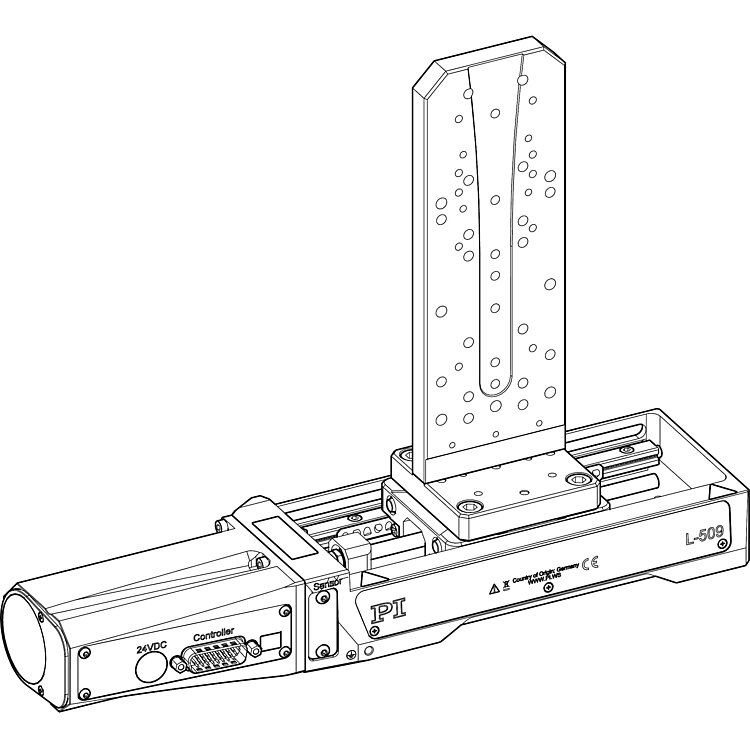

- Adapter bracket on positioner: The adapter bracket can be mounted on the moveable translation stage of the positioner and is then moved with the positioner accordingly.

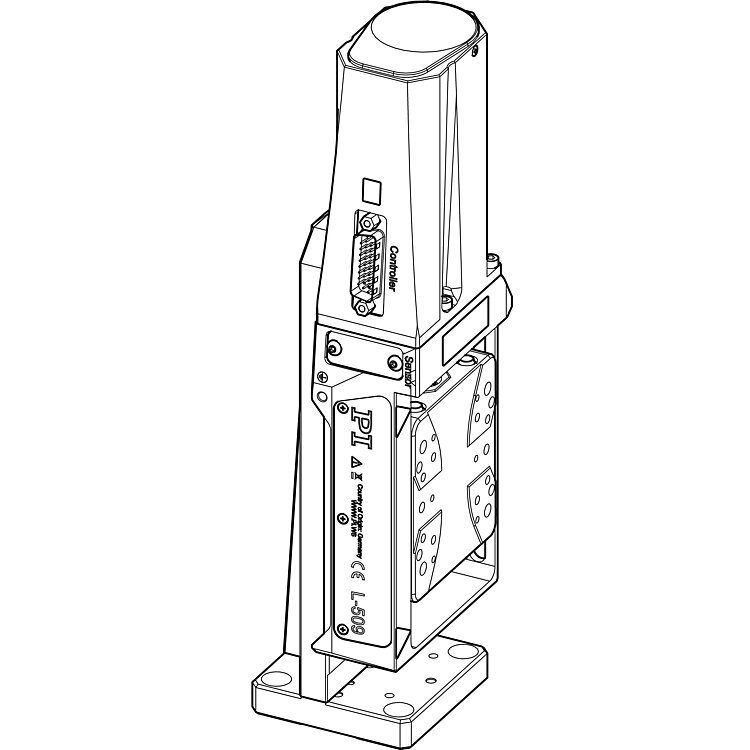

- Positioner on adapter bracket: The positioner can be mounted on the adapter bracket, the stage moves relatively to it.
Specifications
Specifications
Compatible | 61009075 / 6100V075 (adapter bracket on positioner) | 61009075 / 6100V075 (positioner on adapter bracket) | 61009076 (adapter bracket on positioner) | 61009076 (positioner on adapter bracket) |
---|---|---|---|---|
Linear stages | ||||
L-310 | X | – | X | – |
L-509 | X | – | X | X |
L-511 | X | – | X | – |
HPS-170 | X | – | X | – |
LMS-180 | X | – | X | – |
LS-180 | X | – | X | – |
VT-80 | X | X* | X | X** |
Rotation stages | ||||
L-611 | X | – | X | X |
RS-40 | – | X | – | – |
DT-80 | – | X | – | – |
Goniometers | ||||
WT-85 | X | – | X | X |
WT-90 | X | X | X | X |
WT-100 | – | – | – | X |
WT-120 | X | – | X | – |
* to 75 mm travel range
** to 150 mm travel range
Downloads
Datasheet
3D Models
3D Models
3-D model 61009075
zip - 140 KB
3D Models
3-D model 6100V075
zip - 99 KB
3D Models
3-D model 61009076
zip - 192 KB
Quote / Order
Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.
61009075

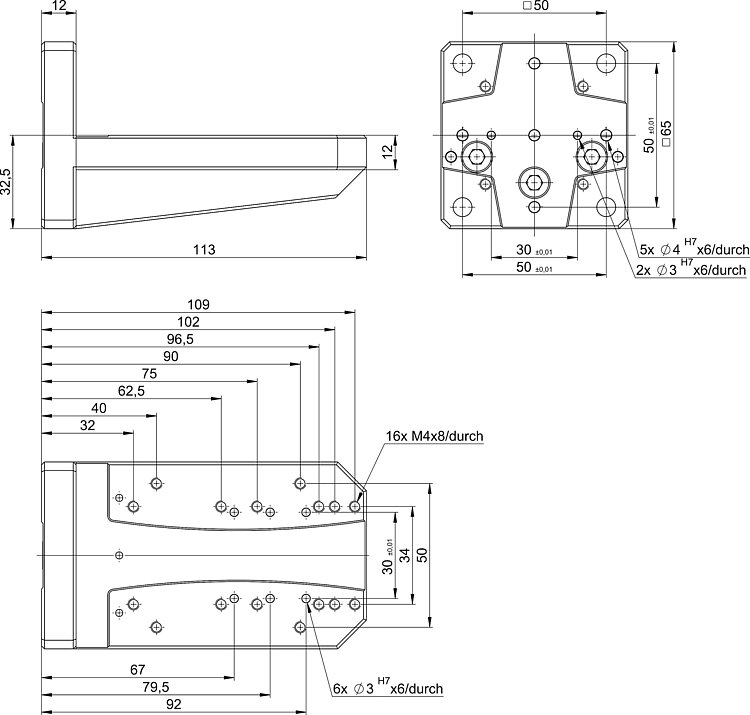

Adapter bracket AB-65 L
61009076

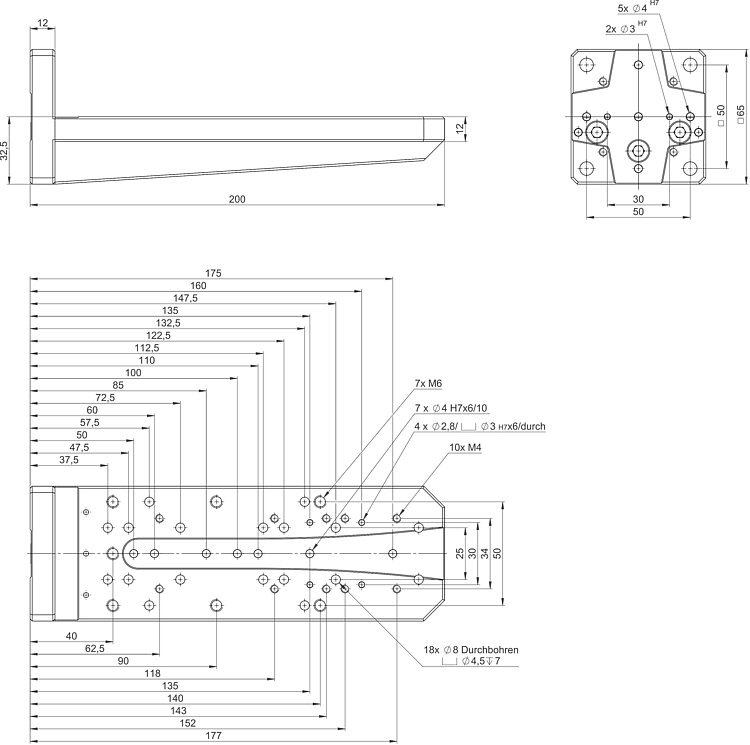

Adapter bracket AB-65 XL
6100V075 NEW!
Adapter bracket AB-65 L, vacuum compatible to 10-9 hPa
