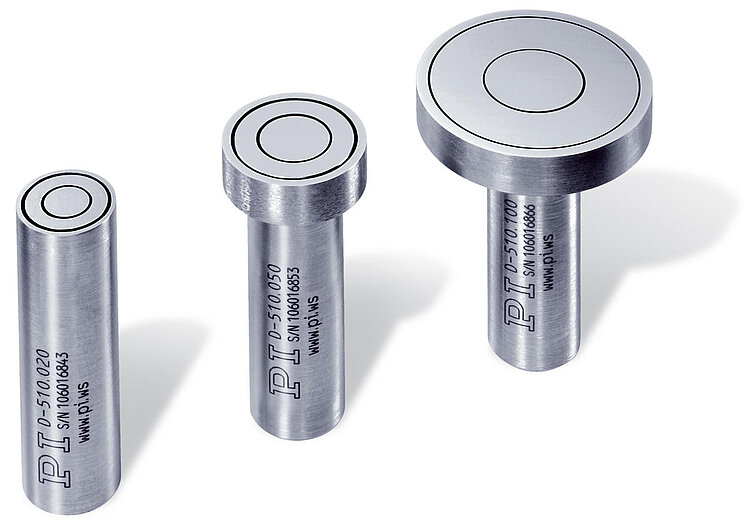

D-510 PISeca Capacitive Sensors
Single-Electrode Sensors with Excellent Position Resolution
- Noncontact distance measuring
- Absolute position sensing
- Vibration measuring
- Subnanometer resolution
- Flexible measuring range
- Easy integration
Highest accuracy and lifetime due to capacitive position sensors
In conjunction with the electronics for signal processing, a resolution can be reached in the subnanometer range for quasistatic applications. The bandwidth can be increased up to 10 kHz for high dynamics application, where a resolution in the 1 nm range can still be reached. The linearity error is under 0.1%.
Easy handling and integration

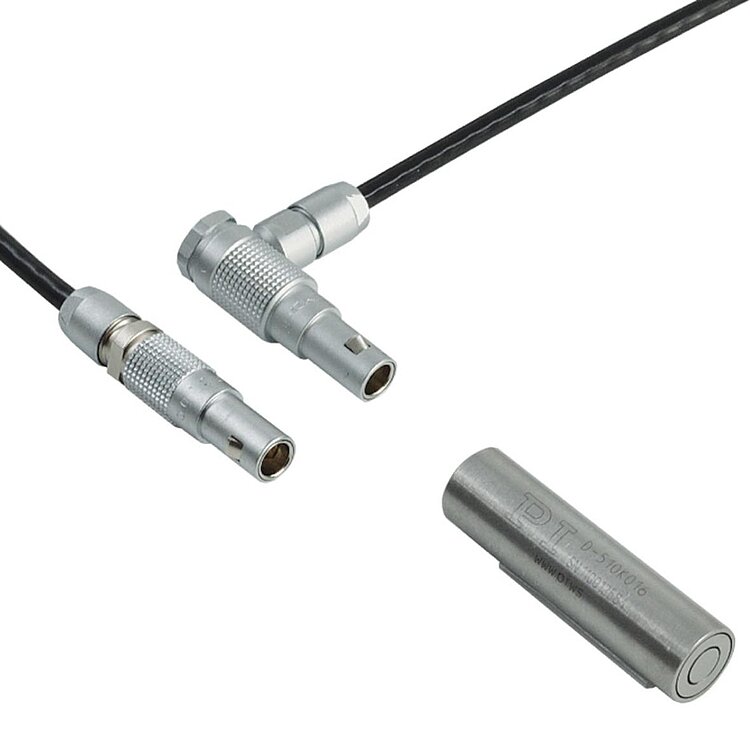

All PISeca sensor heads are equipped with a LEMO connector for easy mounting and replacement. The uniform shaft thickness ensures compatibility and flexibility. The cable for connecting to the evaluation electronics is available in several variants and must therefore be ordered separately.
Customized versions / two-electrode sensors
In addition to the standard sensors listed here, PI offers a series if application-specific custom versions where for example, the measuring range, geometry or material are adapted to customer requirements. Customized electronics are also available.
The two-electrode sensors in the D-100 series are available for the highest demands on linearity and resolution.
Fields of application
Industry and research. Semiconductor manufacturing and inspection. Nanometrology. Active vibration absorber. Precision machining.
Specifications
Specifications

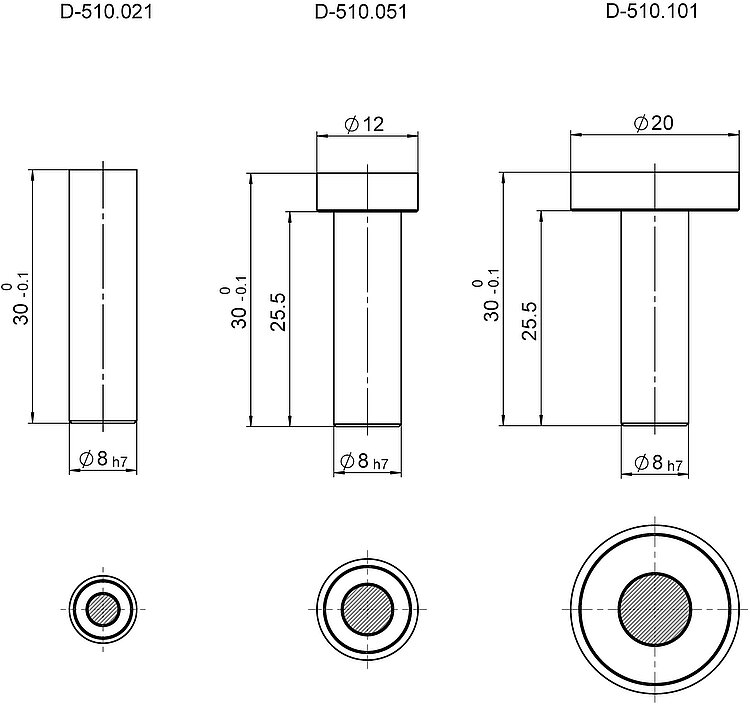

Measurement accuracy | D-510.021 | D-510.051 | D-510.101 |
---|---|---|---|
Nominal measuring range* | 20 µm | 50 µm | 100 µm |
Smallest measuring gap in the nominal measuring range* | 10 µm | 25 µm | 50 µm |
Largest measuring gap in the 5-times extended measuring range* | 150 µm | 375 µm | 750 µm |
Static resolution** | <0.001 % of the measuring range (RMS) | <0.001 % of the measuring range (RMS) | <0.001 % of the measuring range (RMS) |
Dynamic resolution** | <0.002 % of the measuring range (RMS) | <0.002 % of the measuring range (RMS) | <0.002 % of the measuring range (RMS) |
Linearity error*** | <0.2 % | <0.1 % | <0.1 % |
Miscellaneous | D-510.021 | D-510.051 | D-510.101 |
---|---|---|---|
Operating temperature range | -20 to 100 °C | -20 to 100 °C | -20 to 100 °C |
Material | Stainless steel | Stainless steel | Stainless steel |
Mass | 8 g (±5 %) | 10 g (±5 %) | 16 g (±5 %) |
Suitable connecting cable | D-891.01x, D-891.02x | D-891.01x, D-891.02x | D-891.01x, D-891.02x |
Recommended electronics | E-852.10, E-852.10A1, E-711.SE3, E-509, E-509.E03, E-509.E3 | E-852.10, E-852.10A1, E-711.SE3, E-509.E03, E-509.E3 | E-852.10, E-852.10A1, E-711.SE3, E-509, E-509.E03, E-509.E3 |
