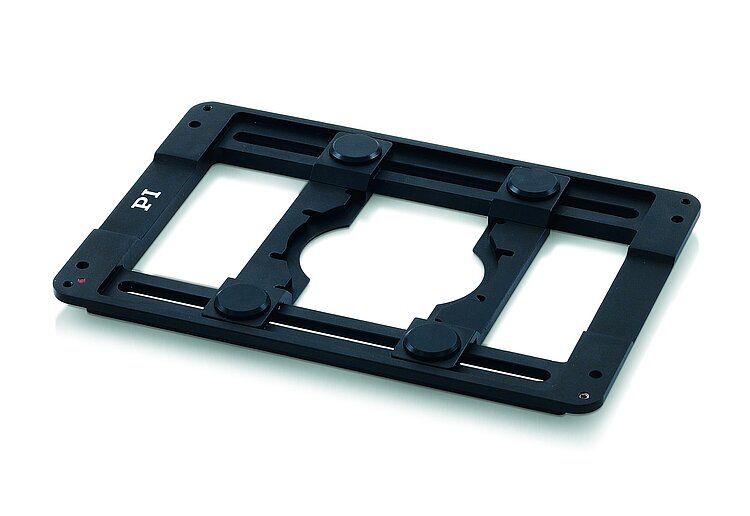

M-687.AP1 Universal Holder for Microscope Slides and Petri Dishes

For PD73Z2COW / PD73Z2ROW PInano® Z Piezo Scanner Systems

Fixing microscope slides and Petri dishes
Fine adjustment of the focal plane with four screws
For apertures with clamping springs (can optionally be screwed on with M3 screws)

quote / order

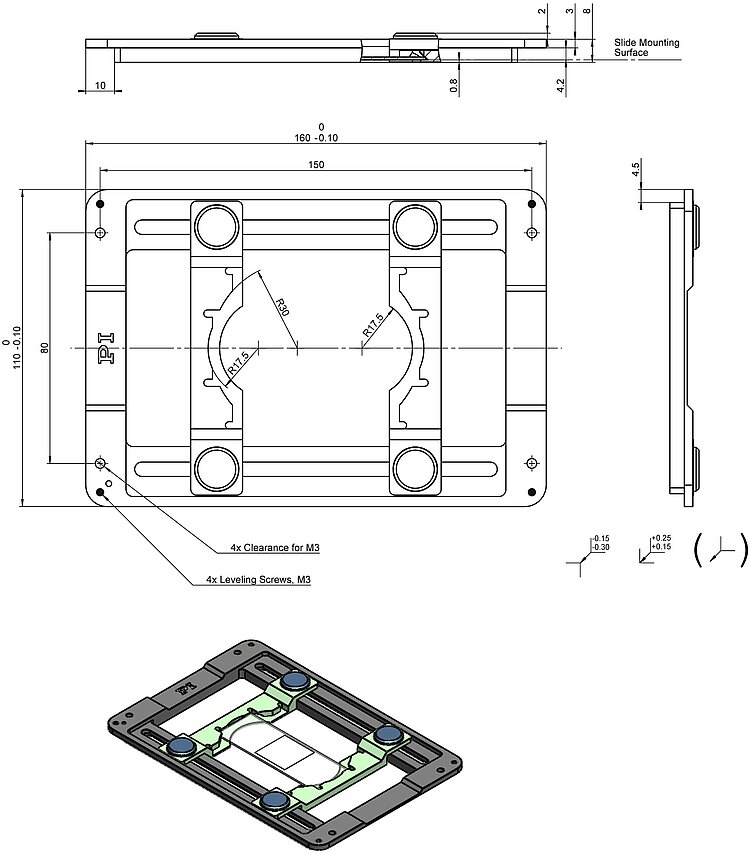

M-687.AP1, dimensions in mm.

Download datasheet specifications quote / order

Datasheet

Version / Date

2022-09-05

pdf - 821 KB

Version / Date

2022-09-05

pdf - 826 KB

Download

quote / order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

M-687.AP1

Universal holder for microscope slides and Petri dishes, for PD73Z2COW / PD73Z2ROW PInano® Z piezo scanner systems (compatible with U-780.DOS systems for Olympus microscopes)
